— Product · Water transfer

Irrigation water,
moved without loss.

A trapezoidal FT flume cast as a precast U-drain — moving irrigation and canal water across long field runs with a smooth, silt-free bore.

Trapezoidal M40 concrete Smooth-bore Long lengths
Specifications
FT Flume Precast U-Drain
Profile
Trapezoidal
Use
Irrigation
Concrete
M40
Finish
Smooth-bore
01 — The product

The FT Flume is a trapezoidal channel cast as a precast U-drain, built to move water across fields rather than under roads. Its open, tapered section carries irrigation and canal flow fast and clean over long runs.

Cast in long lengths with a smooth bore, the flume keeps water moving and silt from settling — so a channel runs at full capacity season after season with very little upkeep.

02 — Why precast

An earthen or in-situ channel loses water to seepage and silts up over time. A precast flume seals the line and gives it a hard, smooth bore — fewer joints over a field run means less leakage and less maintenance.

A sealed, smooth channel that delivers the water you put in at one end to the field at the other.

— Trilok Infratech
03 — Where it's used

It carries irrigation across canals, field channels and farm distribution networks — anywhere water has to travel a long way and arrive without loss.

Applications
Irrigation canals Field channels Water transfer Farm distribution Storm water
— Why it holds up

Water in at one end, out at the other.

A precast channel built to carry irrigation across long runs with as little loss as the line allows.

Fast, even flow

The trapezoidal section keeps water moving cleanly across long field runs.

Silt-free bore

A smooth precast finish stops silt settling and choking the flow.

Fewer joints

Long cast lengths mean fewer joints over a run — and less leakage.

04 — Specifications

Engineering specifications.

Standard FT-Flume sections — for storm water drains, power ducts and road crossings, as a replacement of pipe culverts. Designed for a live load of 1 T/m² (10 kN/m²). Customized sizes available for mass quantity.

— Sections

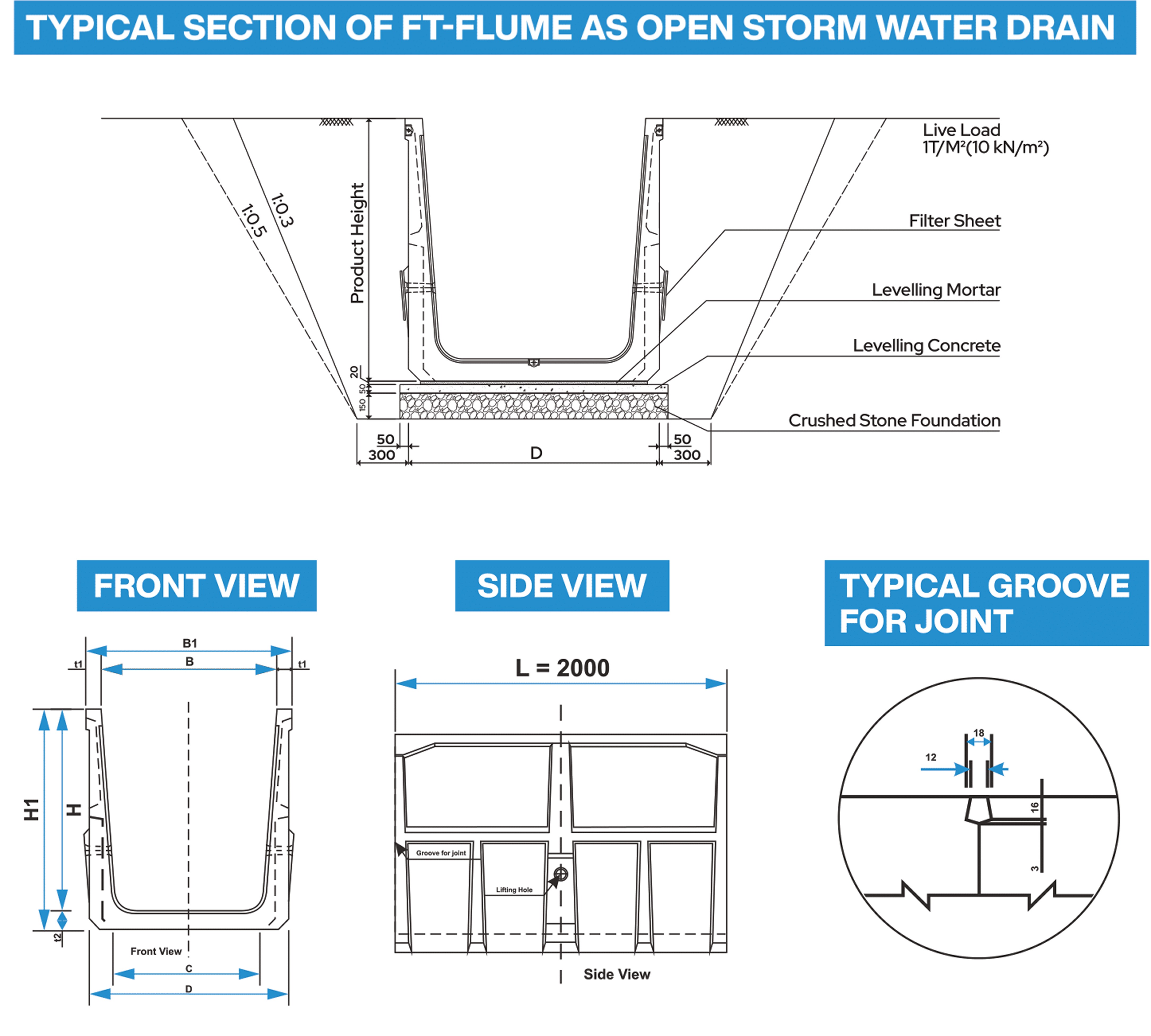

Front view, side view and installation.

All dimensions in mm. Each height (H) is available across the full range of channel widths (B); B1, C and D vary with the chosen section.

Sections FT Flume Precast U-Drain — Sections Open storm water drain section (live load 1 T/m²) · front view · side view L = 2000 · groove for joint
Open storm water drain section (live load 1 T/m²) · front view · side view L = 2000 · groove for joint

Swipe to see all columns

H = 900 · H1 = 995
Width B (mm) 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800
B1 780 880 980 1080 1180 1280 1380 1480 1580 1680 1780 1880 1980
C 465 565 665 765 865 965 1065 1165 1265 1365 1465 1565 1665
D 740 840 940 1040 1140 1240 1340 1440 1540 1640 1740 1840 1940
— H = 1000

Swipe to see all columns

H = 1000 · H1 = 1150
Width B (mm) 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800
B1 780 880 980 1080 1180 1280 1380 1480 1580 1680 1780 1880 1980
C 450 550 650 750 850 950 1050 1150 1250 1350 1450 1550 1650
D 740 840 940 1040 1140 1240 1340 1440 1540 1640 1740 1840 1940
— H = 1200

Swipe to see all columns

H = 1200 · H1 = 1310
Width B (mm) 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000
B1 980 1080 1180 1280 1380 1480 1580 1680 1780 1880 1980 2080 2180
C 620 720 820 920 1020 1120 1220 1320 1420 1520 1620 1720 1820
D 940 1040 1140 1240 1340 1440 1540 1640 1740 1840 1940 2040 2140
— H = 1300

Swipe to see all columns

H = 1300 · H1 = 1420
Width B (mm) 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000
B1 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200
C 605 705 805 905 1005 1105 1205 1305 1405 1505 1605 1705 1805
D 960 1060 1160 1260 1360 1460 1560 1660 1760 1860 1960 2060 2160
— H = 1400

Swipe to see all columns

H = 1400 · H1 = 1530
Width B (mm) 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000
B1 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200
C 590 690 790 890 990 1090 1190 1290 1390 1490 1590 1690 1790
D 960 1060 1160 1260 1360 1460 1560 1660 1760 1860 1960 2060 2160
— H = 1500

Swipe to see all columns

H = 1500 · H1 = 1640
Width B (mm) 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000
B1 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200
C 575 675 775 875 975 1075 1175 1275 1375 1475 1575 1675 1775
D 960 1060 1160 1260 1360 1460 1560 1660 1760 1860 1960 2060 2160
— H = 1600

Swipe to see all columns

H = 1600 · H1 = 1740
Width B (mm) 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000
B1 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200
C 560 660 760 860 960 1060 1160 1260 1360 1460 1560 1660 1760
D 960 1060 1160 1260 1360 1460 1560 1660 1760 1860 1960 2060 2160
— H = 1800

Swipe to see all columns

H = 1800 · H1 = 1940
Width B (mm) 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000
B1 1070 1170 1270 1370 1470 1570 1670 1770 1870 1970 2070 2170 2270
C 530 630 730 830 930 1030 1130 1230 1330 1430 1530 1630 1730
D 990 1090 1190 1290 1390 1490 1590 1690 1790 1890 1990 2090 2190

Customized sizes available for mass quantity. Send us a drawing and we'll cast to your exact section, length and capacity.

— Gallery

From every angle.

FT flume precast U-drain FT flume with cover slab FT flume — end view
05 — FAQ

About the FT flume.

Common questions on capacity, sizing and laying. For anything project-specific, send us your drawing.

It's a trapezoidal precast channel for moving water across fields rather than under roads — irrigation canals, field channels and farm distribution networks where flow has to travel a long way and arrive without loss.

M40 concrete, RCC reinforced, designed for a live load of 1 T/m² (10 kN/m²) and cast to IS standards. It can also serve as an open stormwater drain where that capacity suits.

Heights (H) from 900 mm to 1800 mm, each across channel widths (B) from 600 mm to 2000 mm — a wide matrix of sections. B1, C and D vary with the chosen height and width.

A sealed precast line with a hard, smooth bore stops the seepage and silting that drain an earthen or in-situ channel. Long cast lengths mean fewer joints over a run — and less leakage.

It lays on grade or on supports over a crushed-stone foundation with levelling mortar and a filter sheet. Sections joint spigot-and-socket with a grooved seat for sealing.

Yes — customized sizes are available for mass quantity. Send a drawing with the section, length and capacity and we'll cast to your exact spec.
