Light-duty drainage,
quick to lay.
The T6 U-Shape Drain takes everything that works about our heavy line and puts it in a leaner section for lighter ground. It is the channel for footpaths, plazas and quiet streets — sealed, smooth-bored and quick to place.
A lighter unit is faster to handle and sits flush with finished paving, so the surface stays clean and even. Same sealed bore, same maintenance-free life — sized for where the load is people and not lorries.
On a footpath or plaza you do not want an open trench and a curing slab holding up the paving. Precast lets the drainage keep pace with the surface — units arrive finished, lay quickly and seal as they go.
The same sealed channel as the highway line, in a section a two-person crew can place by hand.
— Trilok Infratech
It edges footpaths, public plazas, landscaped streets and service roads — wherever drainage has to be neat, flush and out of the way.
Neat, flush and quick to place.
A lighter section that keeps the surface clean and the install fast — without giving up the sealed bore.
Lighter to handle
A leaner section that a small crew can place quickly on footpaths and plazas.
Sealed bore
The same smooth, maintenance-free channel as the heavy-duty line.
Flush finish
Sits level with the paving so the finished surface stays clean and even.
Engineering specifications.
Standard sections for the light-duty U-shape drain — for storm water drains and power and telecommunication cable ducts. Customized sizes available for mass quantity.

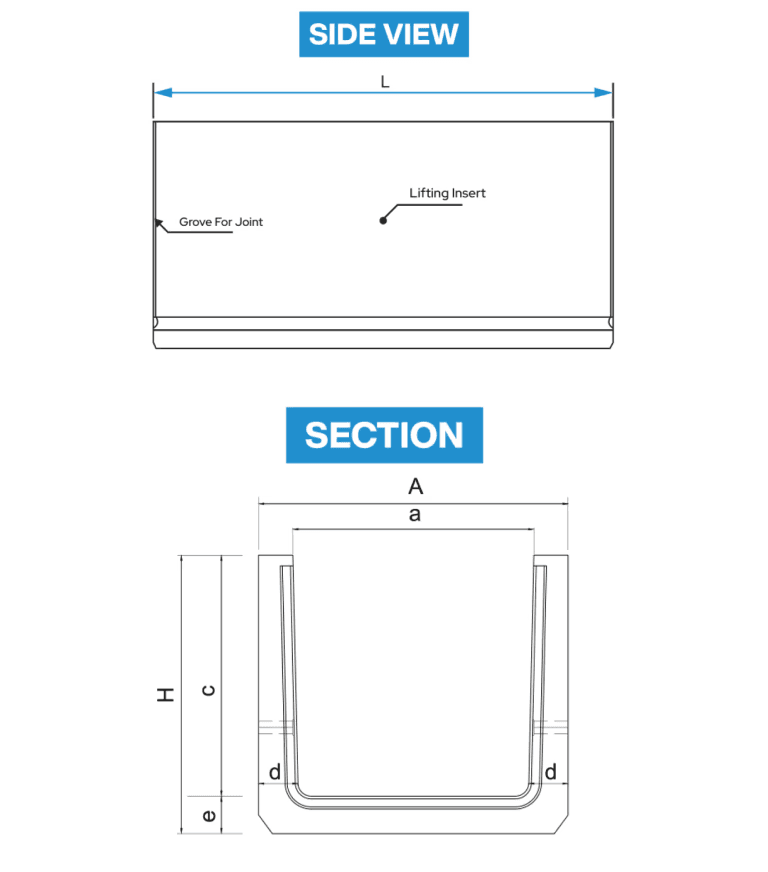

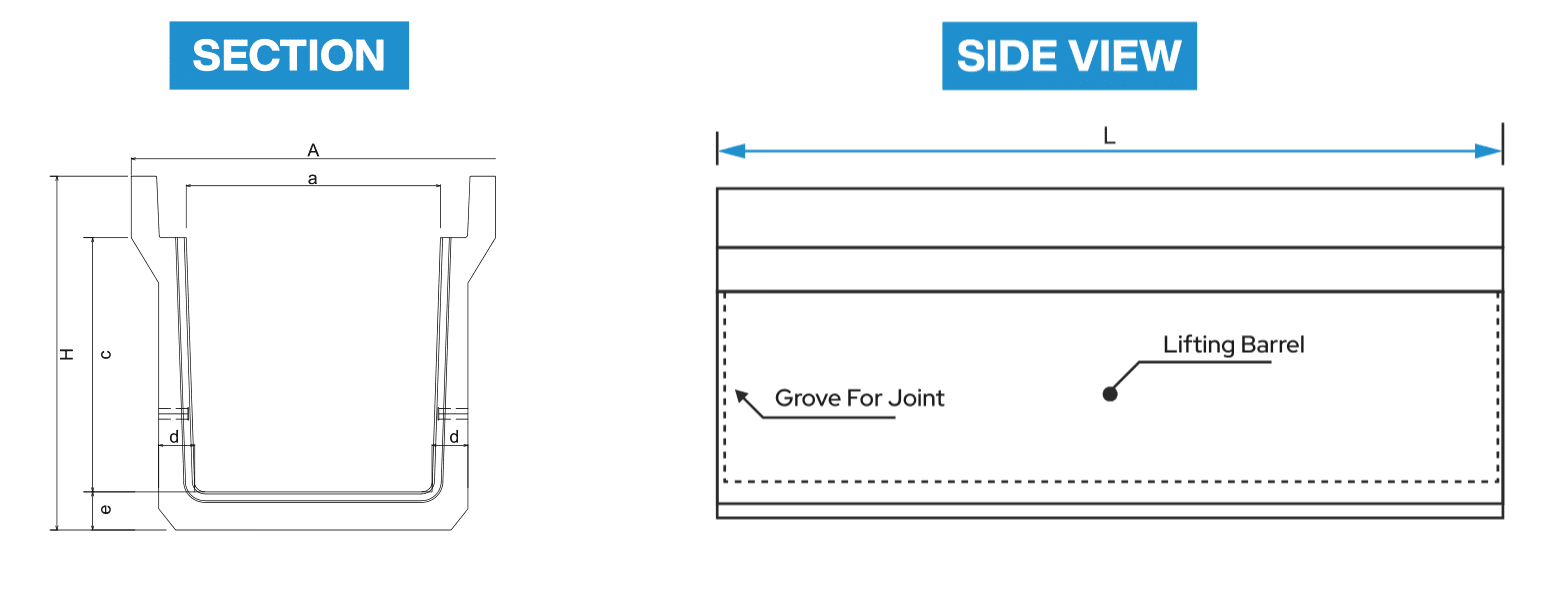

Channel sizes.
Swipe to see all columns
| Size a × c (mm) | L | A | H | a | c | d | e |
|---|---|---|---|---|---|---|---|
| 300 × 300 | 2000 | 440 | 370 | 300 | 300 | 70 | 70 |
| 450 × 450 | 2000 | 610 | 520 | 450 | 450 | 75 | 70 |
| 600 × 600 | 2000 | 730 | 685 | 600 | 600 | 85 | 85 |
| 750 × 750 | 2000 | 890 | 845 | 750 | 750 | 95 | 95 |
| 900 × 900 | 2000 | 1070 | 1015 | 900 | 900 | 115 | 115 |
| 600 × 300 | 2000 | 730 | 385 | 600 | 300 | 70 | 85 |
| 600 × 400 | 2000 | 730 | 485 | 600 | 400 | 75 | 85 |
| 600 × 500 | 2000 | 730 | 585 | 600 | 500 | 75 | 85 |
Standard and without-hole covers.
| Drain size A′ × B′ (mm) | A′ | B′ | H |
|---|---|---|---|
| 300 × 300 | 500 | 440 | 60 |
| 450 × 450 | 500 | 610 | 80 |
| 600 × 600 | 500 | 720 | 80 |
| 750 × 750 | 500 | 890 | 90 |
| 900 × 900 | 500 | 1060 | 100 |

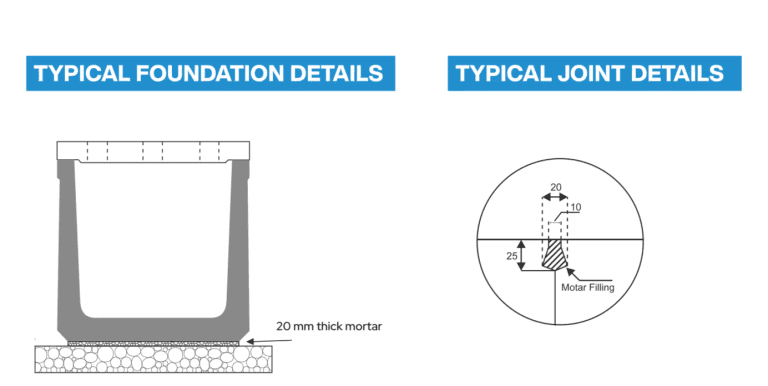

Typical foundation & joint.
Levelled granular bed with mortar seating; tongue-and-groove joint with mortar filling.
Customized sizes available for mass quantity. Send us a drawing and we'll cast to your exact section, grade and length.

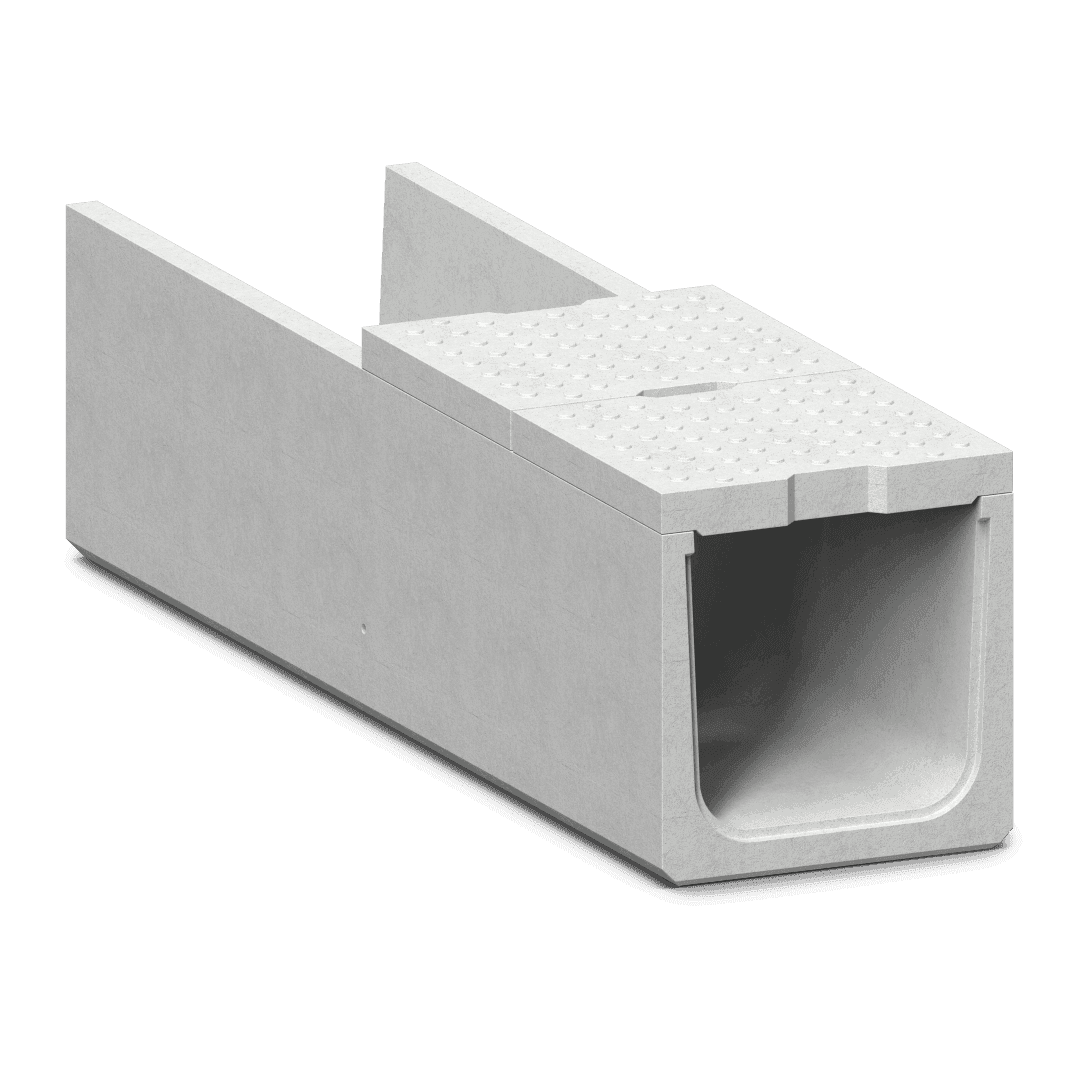

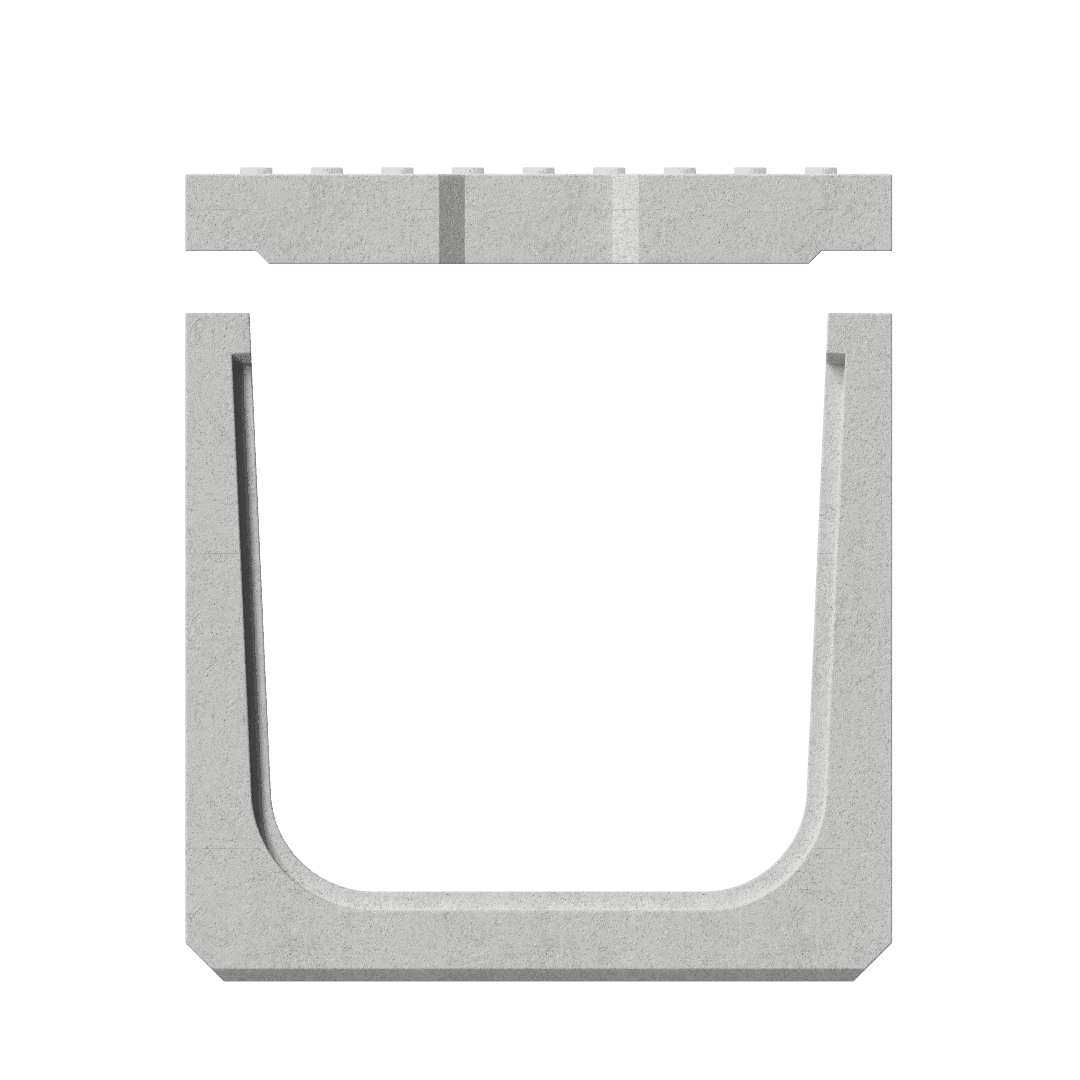

From every angle.
About the T6 drain.
Common questions on load, sizing and laying. For anything project-specific, send us your drawing.
It's a light-duty T6 section for pedestrian and low-traffic areas — footpaths, plazas, landscaped streets and service roads. Where vehicles run over the channel, use our heavy-duty T25 drain instead.
M40 concrete, RCC reinforced, cast and strength-tested to IS standards in our Surat yard — the same sealed, maintenance-free bore as the heavy line, in a leaner section.
Square sections from 300 × 300 mm to 900 × 900 mm, plus rectangular options (600 × 300/400/500), at 2000 mm lengths. Covers come perforated or solid and are rated for pedestrian or grated use.
The section is designed to seat level with finished paving so the surface stays clean and even. A lighter unit also means a two-person crew can place it by hand, fast.
Tongue-and-groove joints with mortar filling on a levelled granular bed — sealed against silt and infiltration, with the smooth bore keeping water moving.
Yes — customized sizes are available for mass quantity. Send a drawing with the section, grade and length and we'll cast to your exact spec.
