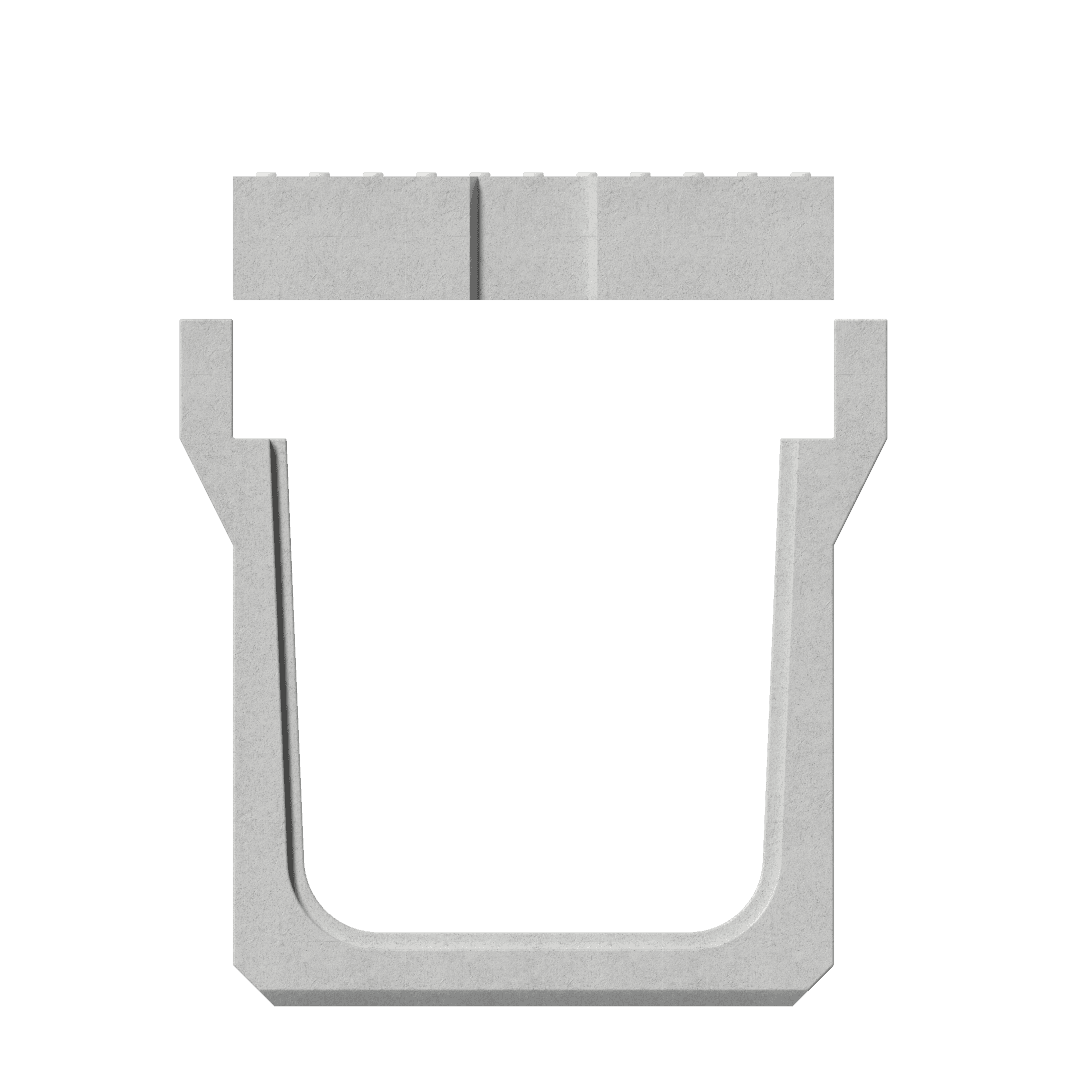

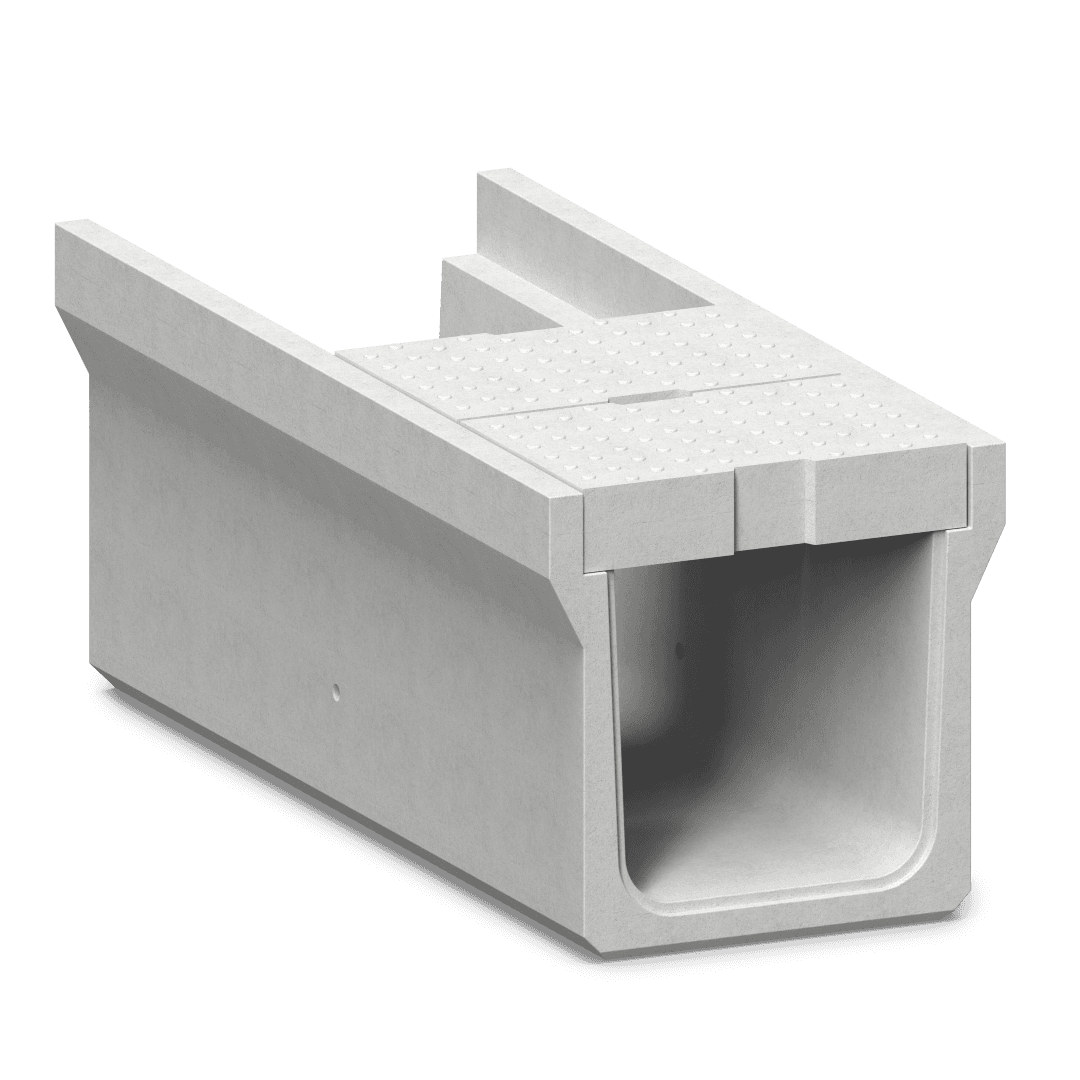

T-25 U-Shape Drain | Heavy
The T25 U-Shape Drain is a heavy-duty precast channel built to carry stormwater along the roads that take the most punishment. Each unit is cast, cured and tested in our Surat yard, then delivered to the trench as finished work — sealed, smooth-bored and ready to set.
Rated to a T25 wheel load, the section takes traffic straight over the channel without flexing or cracking. It is the line we put under highways, crossings and industrial roads where the cover has to be as strong as the road around it.
Pouring drains in place means formwork, curing time and an open trench across active routes for days. Precast changes the maths — the channel arrives finished, sets in sequence with the civil works, and is sealed and trafficable almost as fast as it can be laid.
Cast once, in a controlled yard. What reaches the trench is finished, trafficable work, not a job still waiting to be poured.
— Trilok Infratech
It runs the length of national highways, industrial estates and heavy crossings — anywhere the drain has to disappear into the road and carry load from day one.
Made for the roads that take the most.
The same factory standard, batch after batch — built so the channel never becomes the weak point in the road.
Built for traffic
Takes a T25 wheel load over the channel without flexing or cracking, batch after batch.
Laid in a day
Cast and cured in the yard, then sealed and trafficable almost as fast as the units are laid.
Sealed against silt
A smooth precast bore keeps water moving and stops silt settling in the line.
Engineering specifications.
Standard sections for the heavy-duty U-shape drain — for storm water drains and power and telecommunication cable ducts. Customized sizes available for mass quantity.

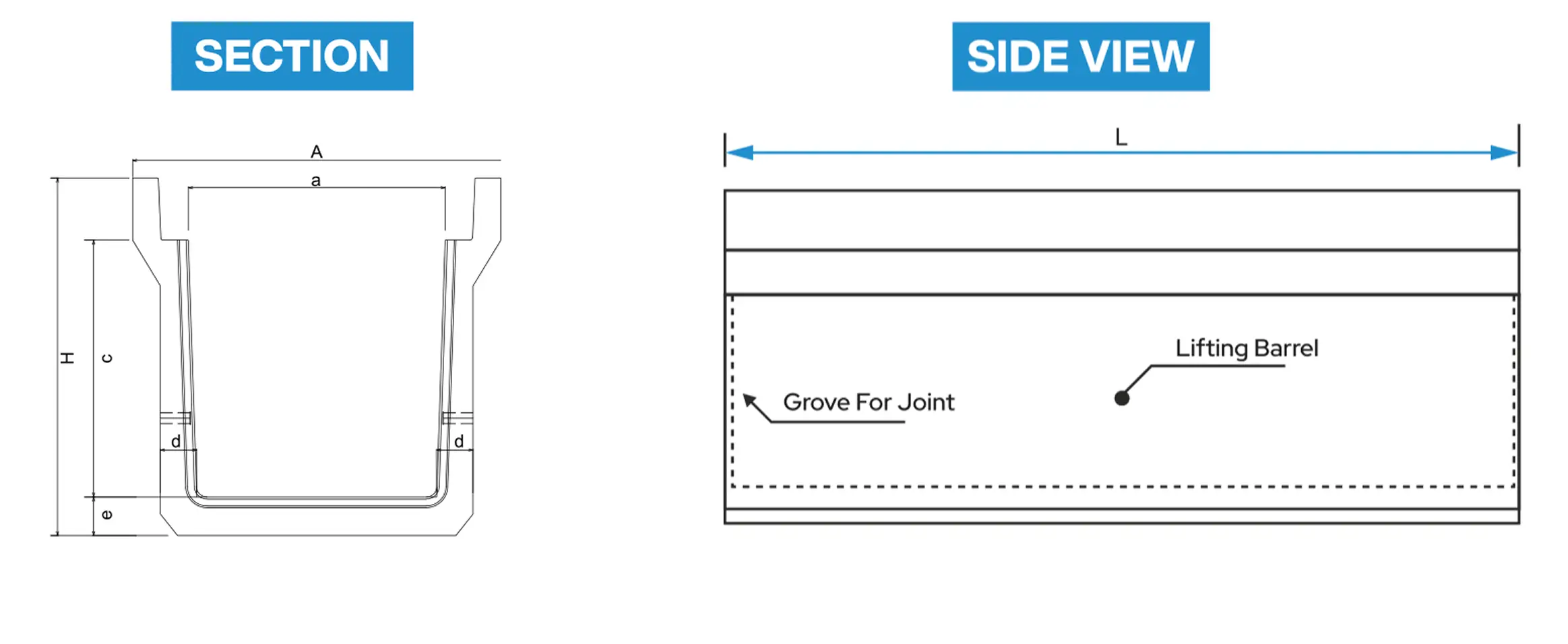

Channel sizes.
Swipe to see all columns
| Size a × c (mm) | L | A | H | a | c | d | e |
|---|---|---|---|---|---|---|---|
| 300 × 300 | 2000 | 540 | 480 | 300 | 300 | 65 | 70 |
| 450 × 450 | 2000 | 700 | 660 | 450 | 450 | 75 | 80 |
| 600 × 600 | 2000 | 860 | 835 | 600 | 600 | 85 | 90 |
| 750 × 750 | 2000 | 1050 | 1000 | 750 | 750 | 95 | 100 |
| 900 × 900 | 2000 | 1200 | 1170 | 900 | 900 | 115 | 120 |
| 1200 × 1200 | 2000 | 1500 | 1470 | 1200 | 1200 | 120 | 120 |

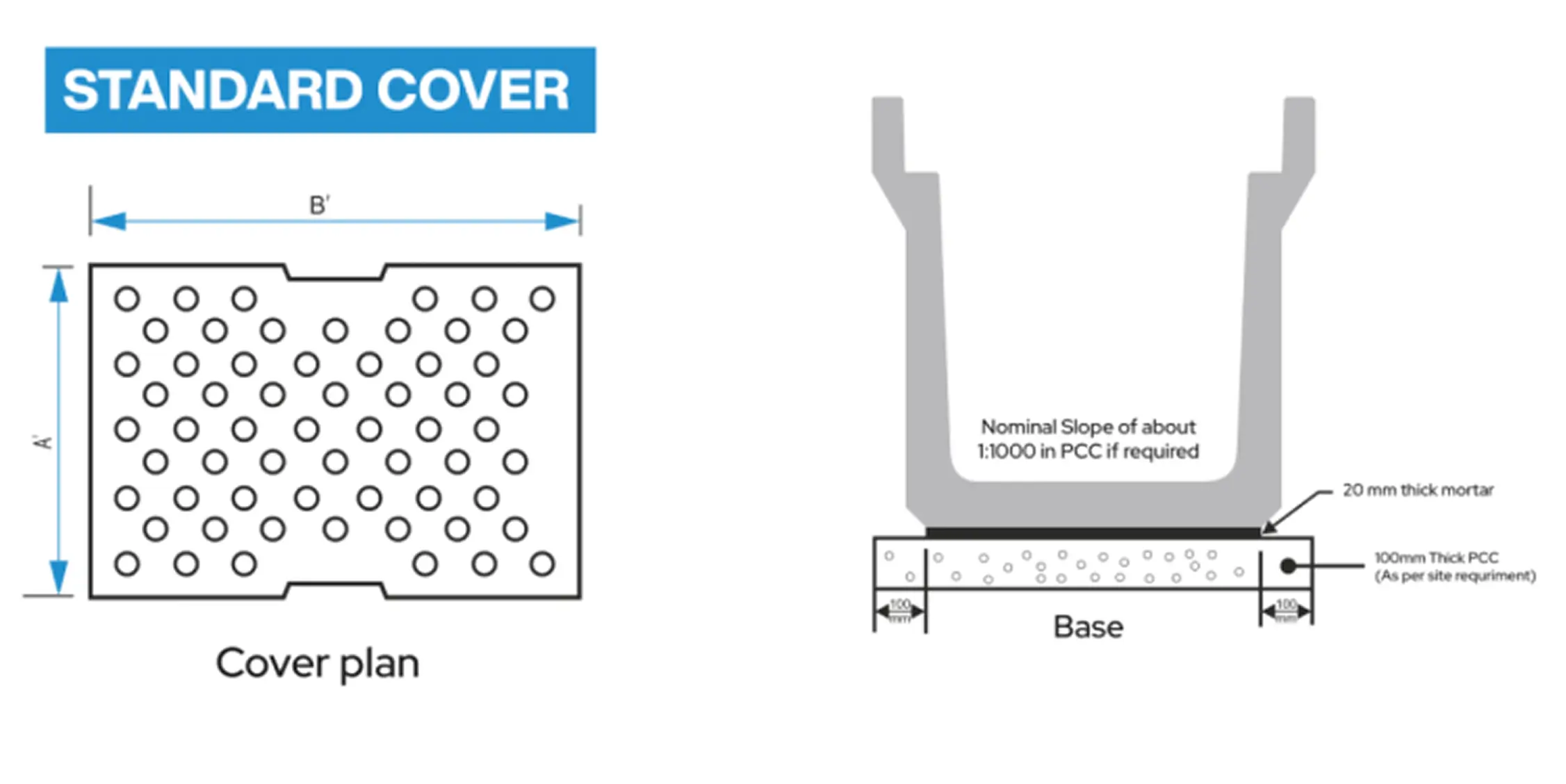

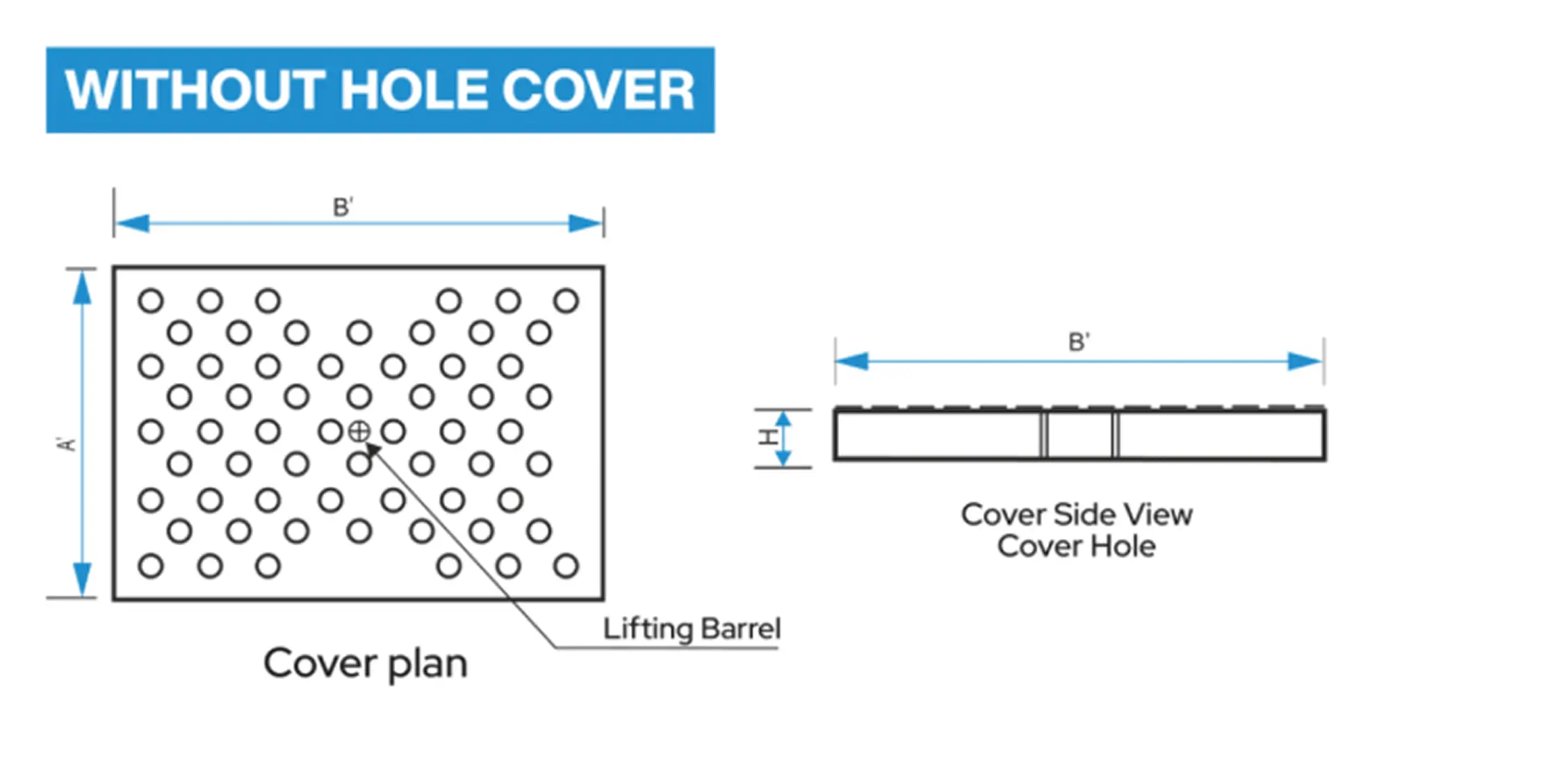

Standard and without-hole covers.
Covers come perforated (standard) or solid, and lift off by a barrel for cleaning and access.
| Drain size A′ × B′ (mm) | A′ | B′ | H |
|---|---|---|---|
| 300 × 300 | 500 | 410 | 110 |
| 450 × 450 | 500 | 565 | 130 |
| 600 × 600 | 500 | 710 | 140 |
| 750 × 750 | 500 | 890 | 145 |
| 900 × 900 | 500 | 1050 | 150 |
| 1200 × 1200 | 1000 | 1330 | 150 |

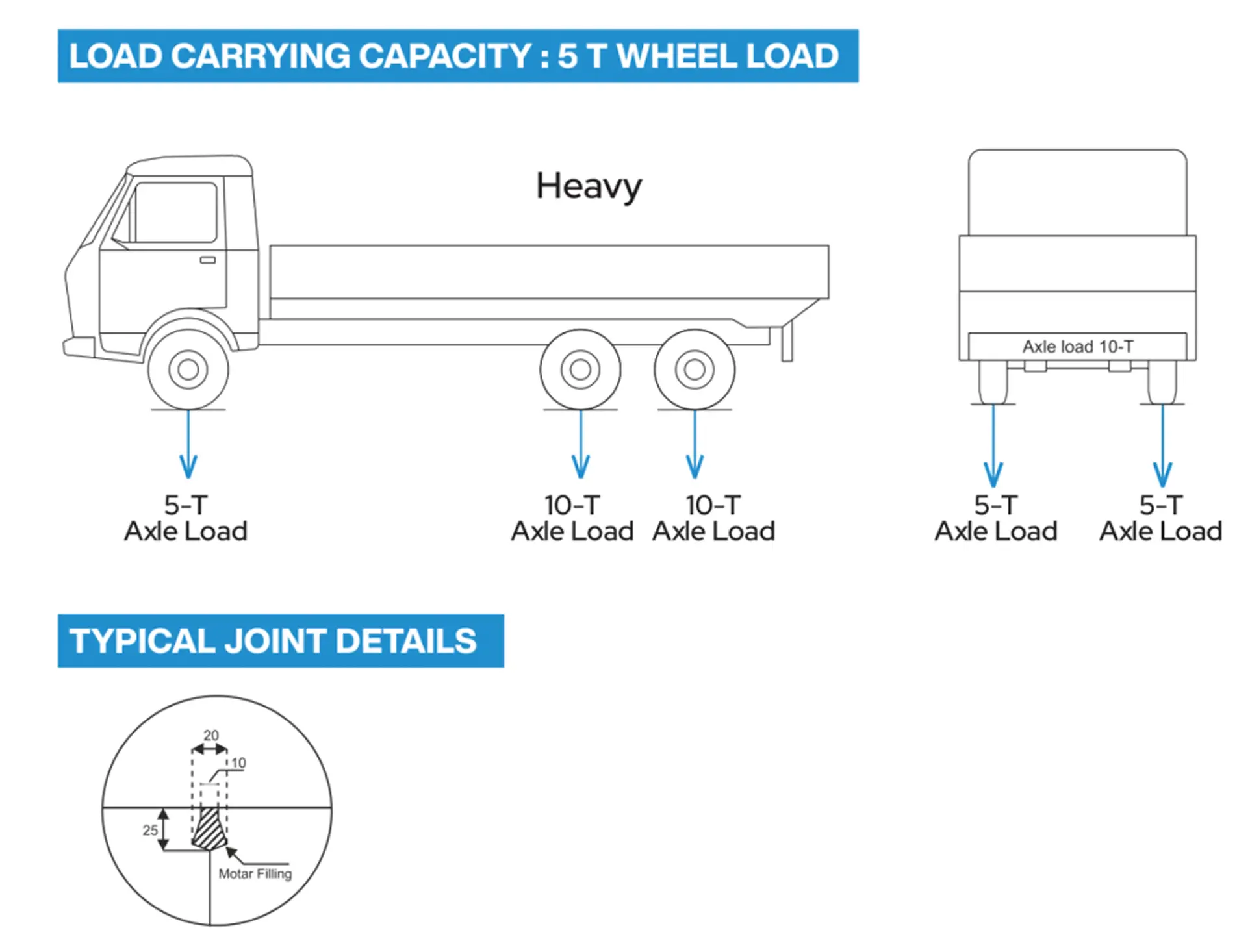

Rated for a 5-T wheel load.
Tongue-and-groove joint with mortar filling; 100 mm PCC base with a 20 mm mortar bed.
Customized sizes available for mass quantity. Send us a drawing and we'll cast to your exact section, grade and length.
From every angle.
About the T25 drain.
Common questions on load, jointing and laying. For anything project-specific, send us your drawing.
It's rated T25 — a 5-tonne wheel load, 10-tonne axle — so traffic runs straight over the channel. That's the line we put under highways, crossings and industrial roads where the cover has to match the road around it.
M50 concrete, RCC reinforced, cast and strength-tested to IS standards in our Surat yard. Every batch carries test certificates and traceability.
Standard channels run from 300 × 300 mm up to 1200 × 1200 mm at 2000 mm lengths. Covers come perforated or solid (without-hole), are trafficable, and lift off via a barrel for cleaning and access.
A tongue-and-groove joint with mortar filling keeps the line sealed against silt and infiltration. The smooth precast bore keeps water moving and stops silt settling.
A 100 mm PCC base with a 20 mm mortar bed under the channel. Units arrive finished and cured, so they're laid in sequence and sealed and trafficable almost as fast as they're set.
Yes — customized sizes are available for mass quantity. Send a drawing with the section, grade and length and we'll cast to your exact spec.
